Slim LED Light Bars

Selected slim LED light bar solutions for auxiliary driving, off-road, utility, and commercial vehicle applications.

20" Curved LED Driving Light Bar – AALB-1406

A compact 20-inch curved LED driving light bar designed for auxiliary driving light applications on commercial vehicles, off-road vehicles, utility vehicles, and Nordic driving environments.

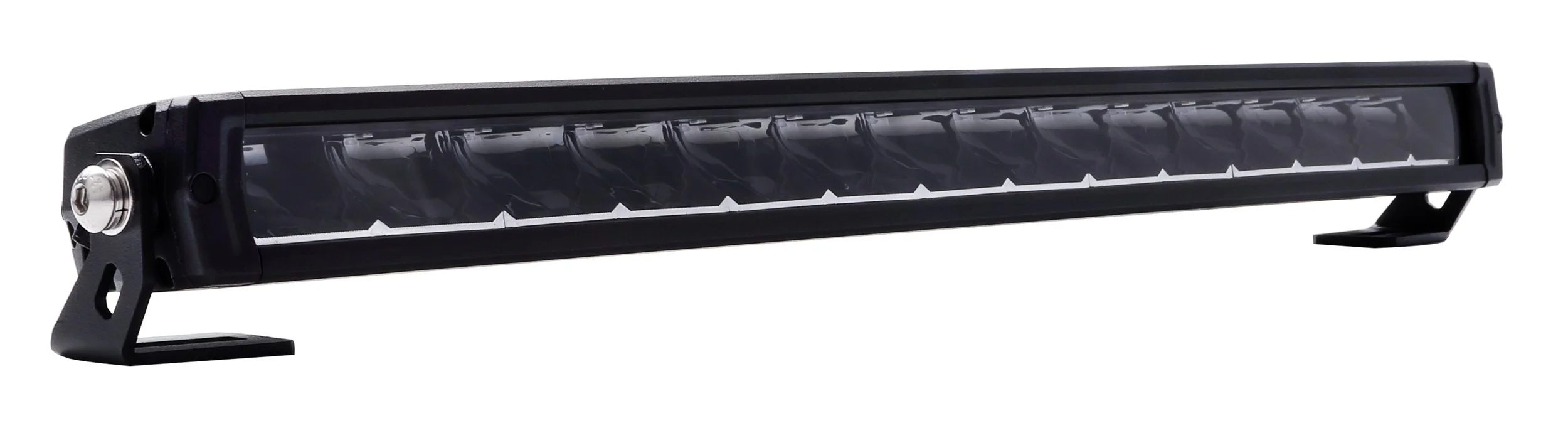

20 inch curved LED driving light bar for commercial vehicles, off-road vehicles, and auxiliary lighting applications

Key Specs

• 20 inch / 98W

• Driving Beam 20°

• Effective Lumens: 7500 lm

• 1 Lux @ 422 m

• DC 9–36V

• IP68 / IP69K

• ECE R112 / ECE R10 support

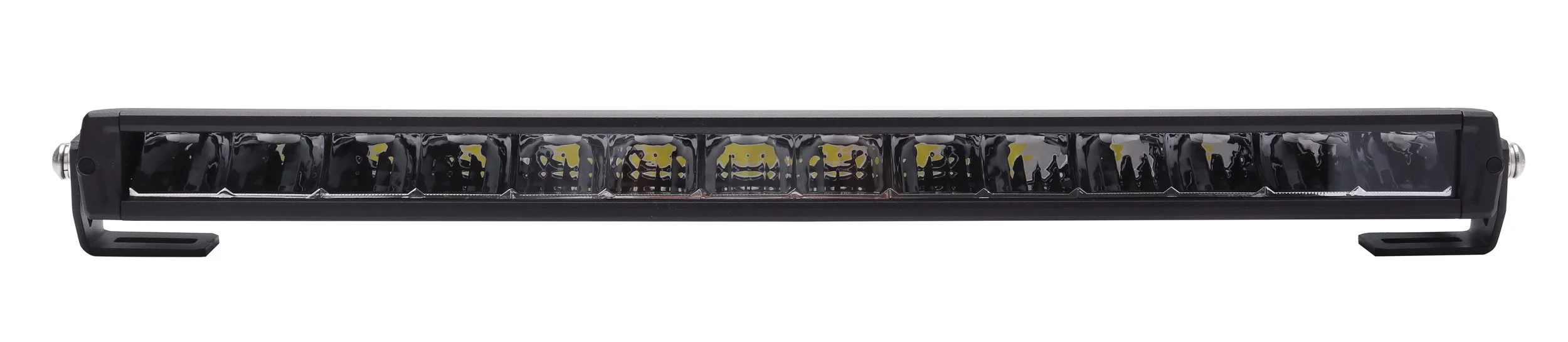

Front view of AALB-1406 20 inch curved LED driving light bar

Front View

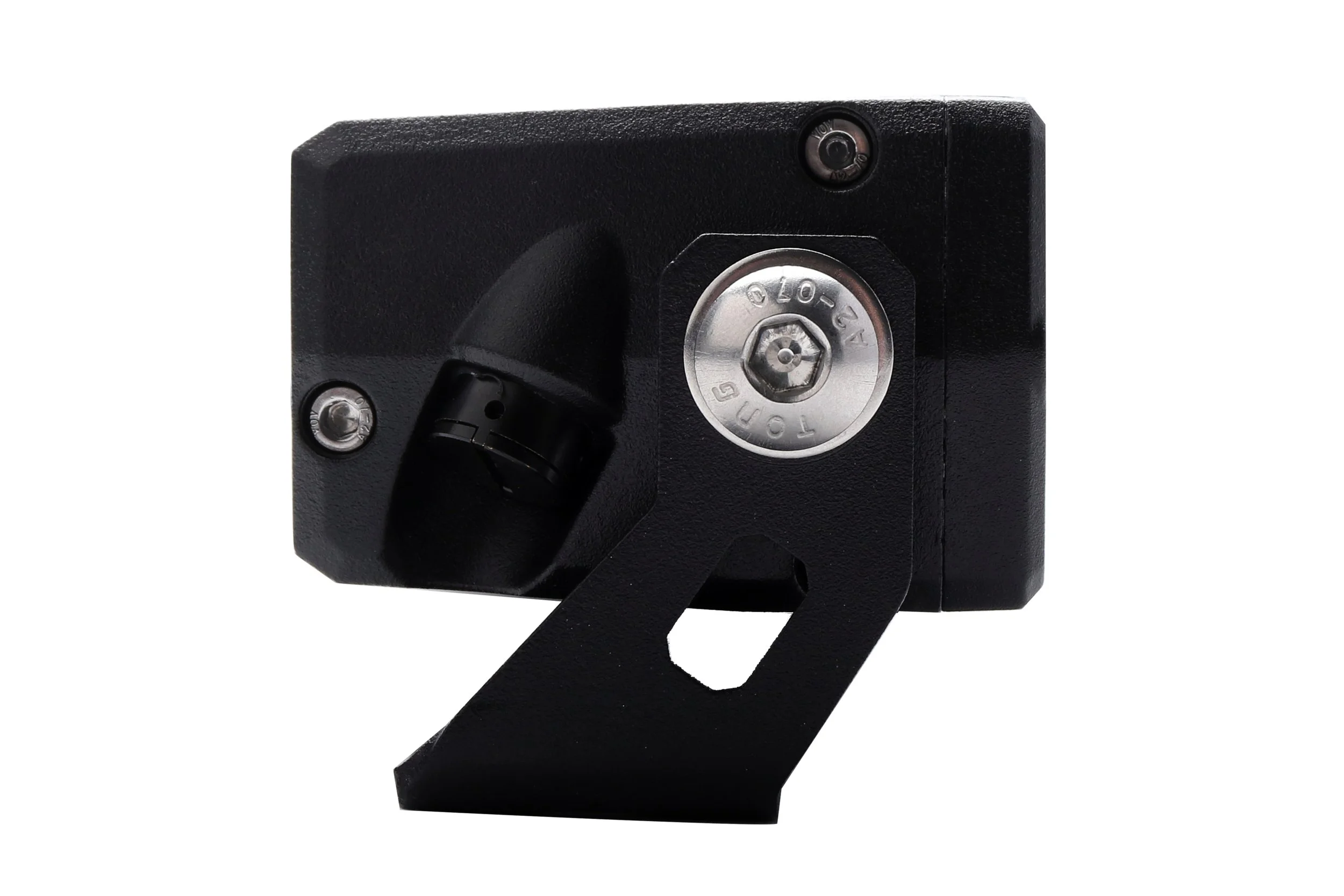

AALB-1406 LED driving light bar mounting bracket detail

Mounting Detail

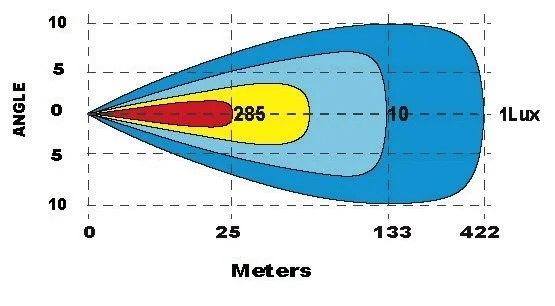

Driving beam pattern for 20 inch curved LED driving light bar

Driving Beam Pattern

For detailed specifications, available documentation, or OEM/ODM project discussion, please contact AUTO ACTION for further information.
