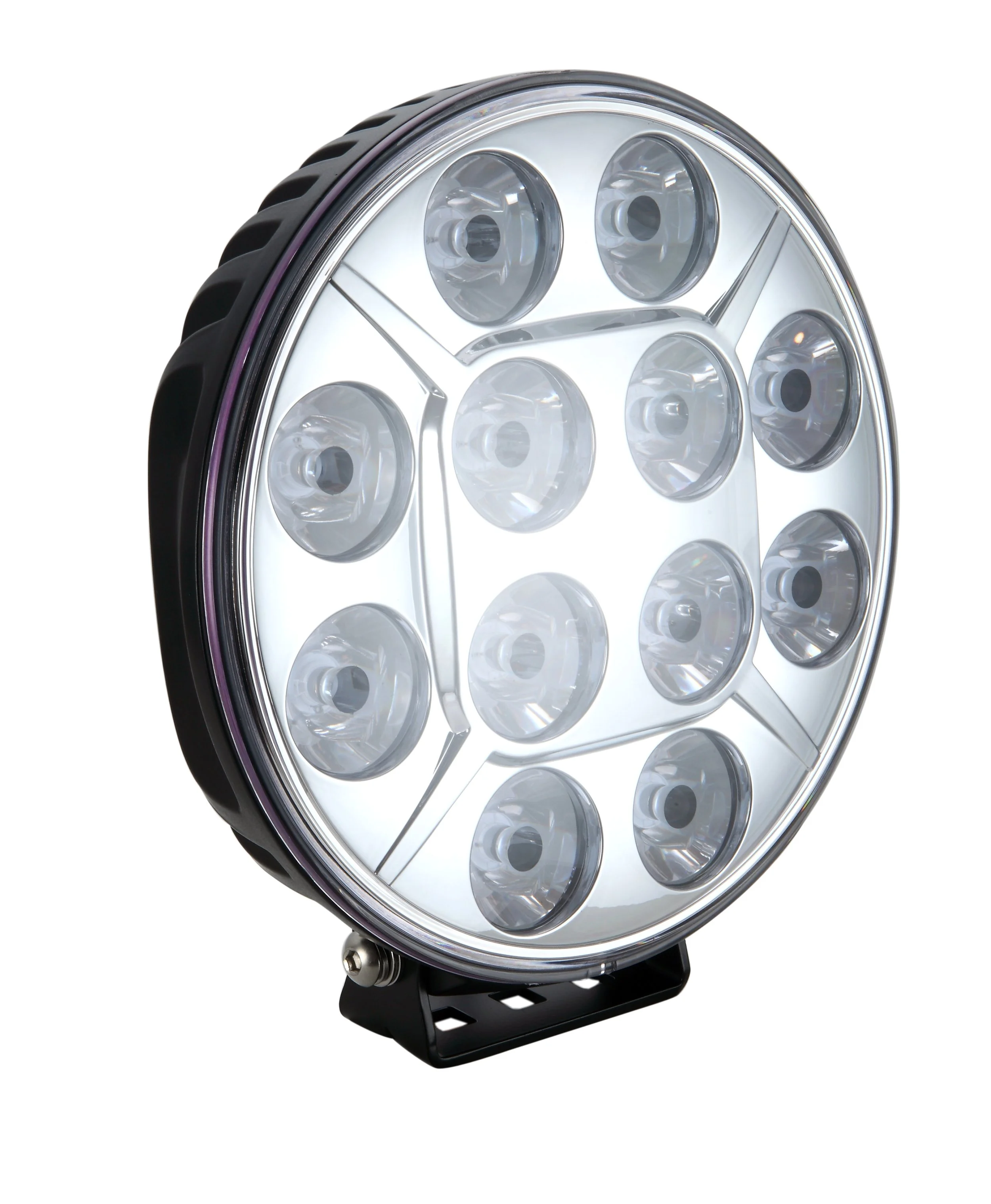

9” Round LED Driving Light

Euro Beam

Wider beam distribution for improved roadside visibility and practical daily driving performance.

Spot Beam

Long-distance concentrated beam pattern designed for highway and high-speed driving applications.

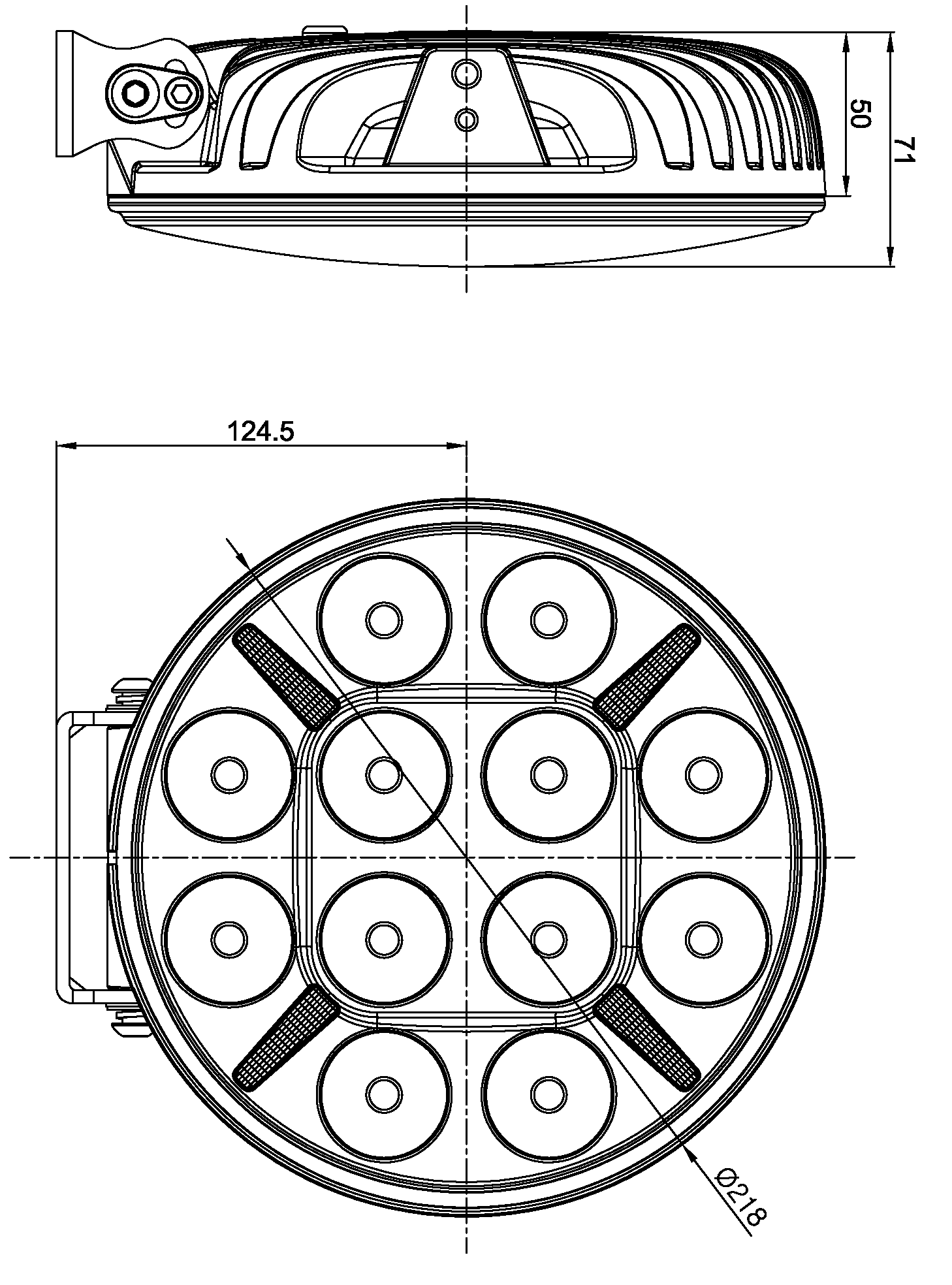

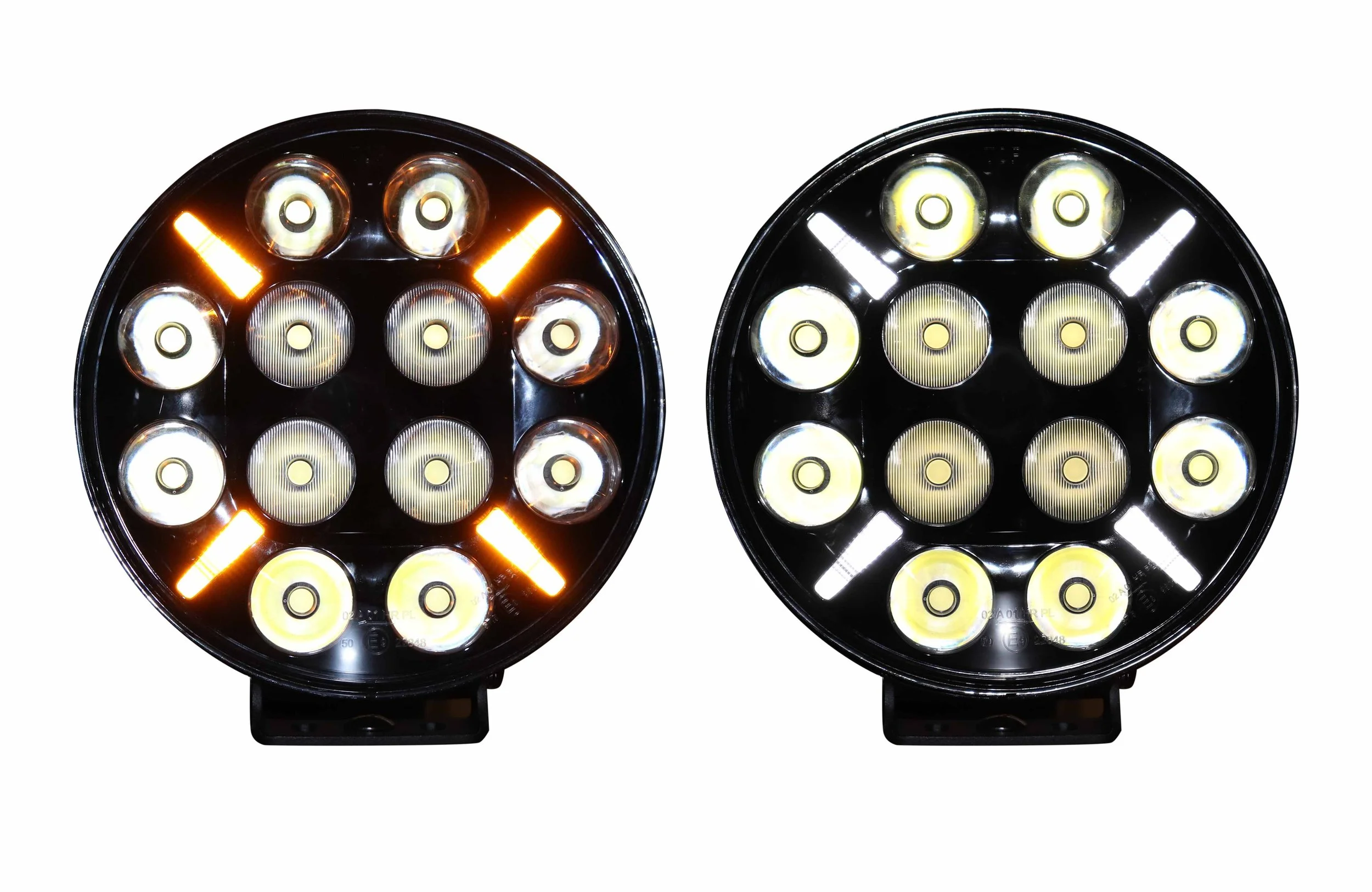

AUTO ACTION Model: AA-1210R

Professional Auxiliary Driving Light for Heavy-Duty and Off-Road Applications

AUTO ACTION AA-1210R is a professional 9” auxiliary driving light designed for heavy-duty, off-road, and commercial vehicle applications.

Available in Spot Beam and Euro Beam patterns with white or amber position light options.

Suitable for Nordic and European auxiliary lighting projects with OEM / ODM support.

Beam pattern illustration for reference only.
Actual lighting performance may vary depending on vehicle installation, mounting position, and application conditions.

Key Features

  • 9” round auxiliary driving light

  • White and amber position light options

  • Spot beam and Euro beam available

  • High-output LED performance

  • Die-cast aluminum housing

  • Heavy-duty mounting bracket

  • Waterproof and dustproof construction

  • Suitable for trucks, off-road, utility, and commercial vehicles

  • OEM / ODM project support available

Certifications

  • ECE R112

  • ECE R7

  • ECE R10

  • IP68

Applications

  • Heavy-Duty Trucks

  • Off-Road Vehicles

  • Utility & Service Vehicles

  • Agricultural Machinery

  • Commercial Fleets

  • Nordic Auxiliary Lighting Market

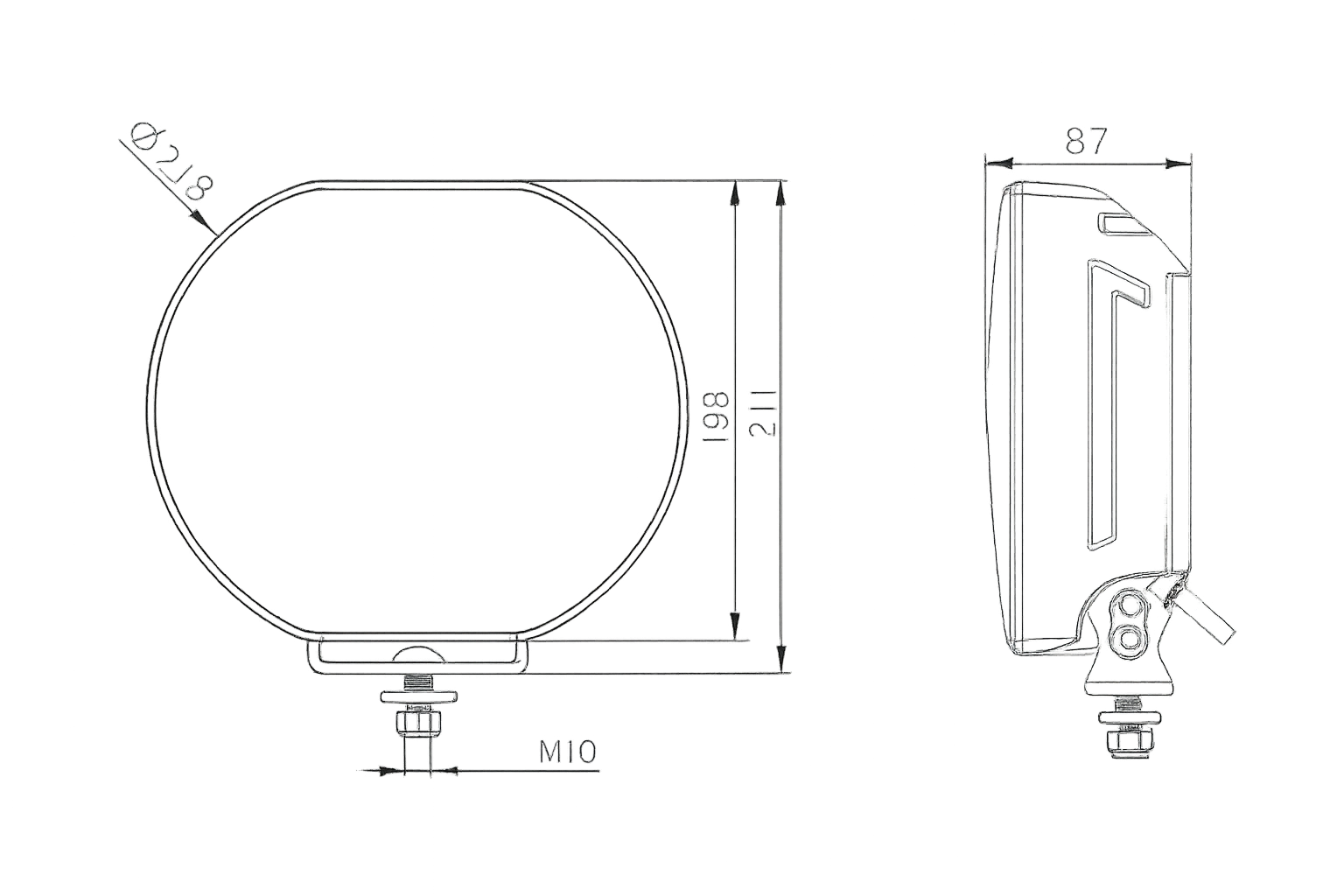

AA-XR9430 9” LED Driving Light

AUTO ACTION AA-XR9430 is a professional 9-inch LED driving light designed for heavy-duty trucks, off-road vehicles, utility vehicles, and commercial applications.

Featuring a distinctive X-style dynamic position light design, the lamp combines modern styling with powerful long-distance driving beam performance for Nordic and European auxiliary lighting markets.

Available with white or amber position light options and integrated warning light function.

Professional Auxiliary Driving Light with Dynamic Position Light for Heavy-Duty and Off-Road Applications

Technical Specifications – AA-XR9430 LED Driving Light

Key Features

  • 9” professional LED driving light

  • Distinctive X-style position light design

  • Dynamic white / amber position light

  • Integrated warning light function

  • High-output driving beam performance

  • Die-cast aluminum housing

  • IP68 / IP69K waterproof protection

  • Electronic Thermal Management (ETM)

  • UV resistant and corrosion resistant

  • Stainless steel mounting bracket

  • Suitable for 12V and 24V systems

  • OEM / ODM project support available

Item
Model
Light Source
Position Light
Warning Light
Voltage
Color Temperature
Effective Lumens
Beam Pattern
Waterproof Rating
Housing Material
Lens Material
Operating Temperature
Lifespan

Certifications

  • ECE R148

  • ECE R149

  • CE

  • RoHS

  • IP68 / IP69K

Specification
AA-XR9430
4pcs × 40W LEDs
Dynamic White / Amber
Integrated Flash Warning
DC 9–36V
5000K
8500lm
Driving Beam 25°
IP68 / IP69K
Die-Cast Aluminum
Polycarbonate (PC)
-40°C to +60°C
50,000+ hours

Applications

  • Heavy-duty trucks

  • Off-road vehicles

  • Utility vehicles

  • Agricultural machinery

  • Commercial vehicles

  • Nordic auxiliary lighting market
